With a leading combination of power density and reliability, Enatel microCompacts maximize customer space for revenue-generating equipment, with front connect for ease of installation and maintainability.
Key Features & Benefits
- Micro compact size means more room for your equipment
- World leading power-density
- Modular telecom-grade rectifiers
- Front acces 19”/515 mm ETSI design for ease of installation
- Higher reliability reduces OPEX
- Full remote monitoring available means less site visits, reduced cost
- Easily customised and configured to suit each customer’s needs
- AC voltage measurement
- Energy Manager EM4X
Small and Powerful
Enatel’s microCOMPACT power systems range in power output from 1.6kW to 2.4kW and have a maximum output current of 50A.
They are the ideal solution to meet the requirements of telecommunications applications such as access nodes, DAS requirements and micro/pico base stations.
The microCOMPACT range was designed with the installer in mind, giving true front-connect for DC outputs and pull-out tray monitor for ease of alarm-cabling installation.
With a leading combination of power density and reliability, our microCompacts maximize customer space for revenue-generating equipment, with front connect for ease of installation and maintenance.
Configured to your Requirements

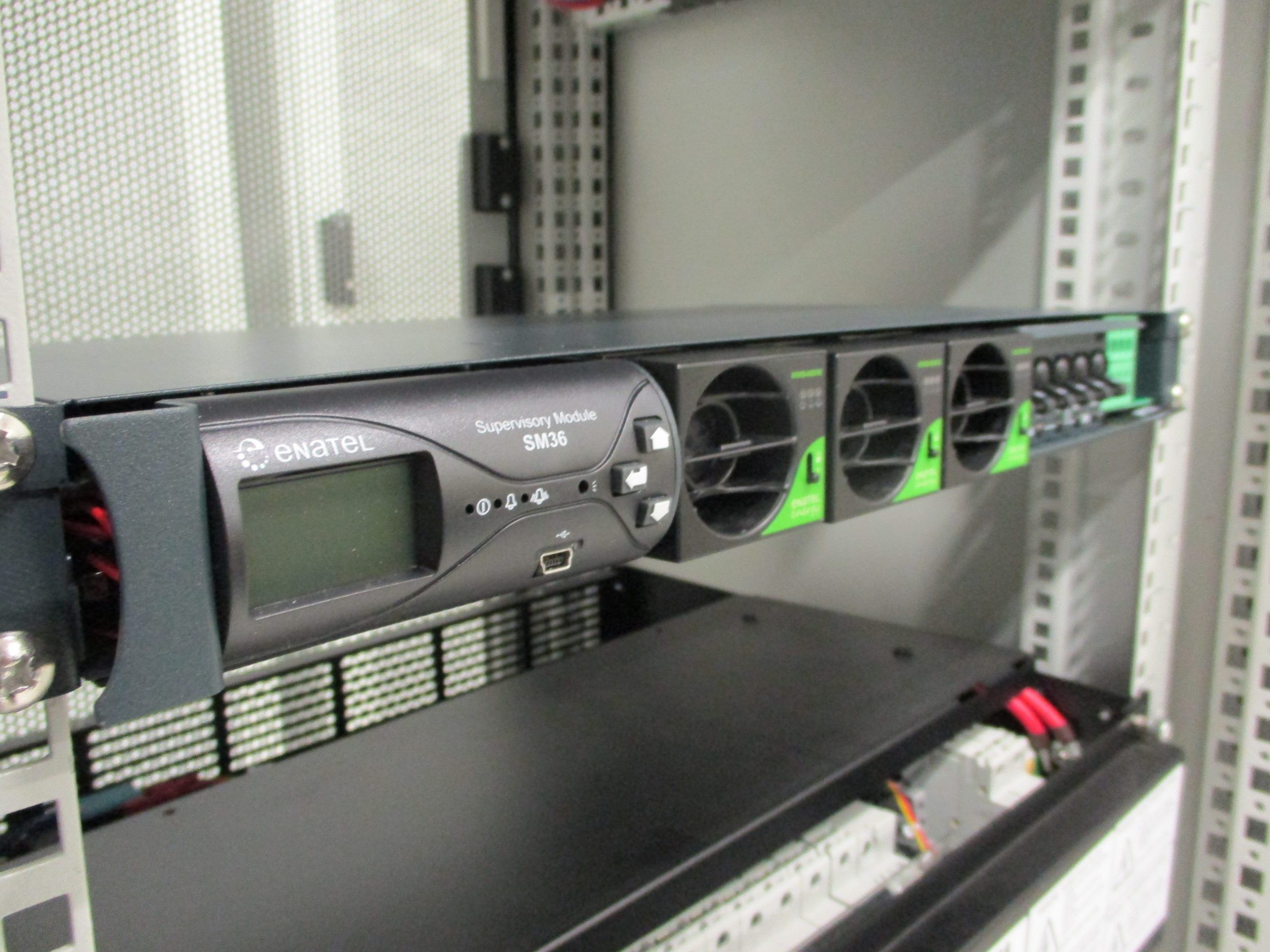

Utilizing Enatel’s intelligent controllers and modular rectifiers, our standalone 1U microCOMPACT DC power systems have been designed to be easily installed in any standard 19” rack or ETSI 515mm/300mm deep rack and can be configured to meet the individual requirements of each customer.
Smart rectifier design allows the RM648/RM848 rectifiers to measure and report AC input voltage to the system supervisory module, without the need for additional hardware.
New Zealand-made to guarantee design, manufacture and process integrity, our robust, proven conversion topology utilizes only the highest specification components, ensuring unparalleled reliability benefits.
Specifications
Model | PSX16 V2 | PSX24 V2 | PSX24 V3 |
Breaker Fail Detection: | Electronic fail detection | Electronic fail detection | Electronic fail detection |
LVD: | 80A magnetically latching battery LVD | 80A magnetically latching battery LVD | 80A magnetically latching battery LVD |
DC Distribution | 6x load circuit breakers (6–30A) 2x battery circuit breakers (max 30A) |
4x load circuit breakers (6–30A) 2x battery circuit breakers (max 30A) |
6x load GMT fuses (1–15A) 2x battery GMT fuses (2x parallel pairs,1–30A) |
DC Terminals: Loads: | 6mm² push-in spring cage | 6mm² push-in spring cage | 6mm² push-in spring cage |
Front Connected: Battery: | 50A power-pole plug-in connectors | 50A power-pole plug-in connectors | 50A power-pole plug-in connectors |
Weight: | 5.0kg (excluding rectifier modules) | 5.0kg (excluding rectifier modules) | 5.0kg (excluding rectifier modules) |
DC Output Nominal Voltage: |
48V DC | 48V DC | 48V DC |
Dimensions (W, H, D): | 482.6mm (19” mount), 44.45mm (1U), 285.0mm | 482.6mm (19” mount), 44.45mm (1U), 285.0mm | 482.6mm (19” mount), 44.45mm (1U), 285.0mm |
Termination: | 2.5mm² 3core cable | 2.5mm² 3core cable | 2.5mm² 3core cable |
DC Output Max Output Power | 1.6 kW | 2.4kW | 2.4KW |
Ambient Temperature: | -20ºC to +70ºC (maximum output power is derated above +50ºC) | -20ºC to +70ºC (maximum output power is derated above +50ºC) | -20ºC to +70ºC (maximum output power is derated above +50ºC) |
About Enatel Energy
Enatel is a leading technology provider of power conversion products for the telecommunications, materials handling, electrical vehicle and renewable energy sectors.
They are based in Christchurch, New Zealand and have over 30 years of experience. More than 95% of everything they design and manufacture on site is exported internationally, to over 75 countries globally.
Much more than a manufacturing company, they are a design house, a development company and a distributor. They own the process from start to finish and supply a number of blue chip companies around the world.
